GNSS/FTS/TELEMETRY ANTENNAS
| Antenna | Frequency | Gain | Polarization | Pattern |
|---|---|---|---|---|
| Active L1/L2 GPS DGA015100 |
L1: 1575.42 ± 10 MHz L2: 1227.42 ± 10 MHz |
13 + 3 dB (preamplified) | RHCP | Directional |
| Active L1/L2 GPS DGA015110 |
L1: 1575.42 ± 10 MHz L2: 1227.42 ± 10 MHz |
L1: 4 dBic L2: 4 dBic Amplifier=40 dB |
RHCP | Directional |
| Active L1 GNSS DGA015170 |
1560-1610 MHz | 4 dBic | RHCP | Directional |
| Passive L1/L2 GPS DGA015120 |
L1: 1575.42 ± 12 MHz L2: 1227.42 ± 12 MHz |
L1: 4 dBic L2: 4 dBic |
RHCP | Directional |
| Passive L1 GPS DGA015140 |
L1: 1575.42 ± 12 MHz | 3.5 dBic | RHCP | Directional | 4 Array L1 Antijam Antenna DGA015100 |
L1: 1575.42 12 MHz | L1: 3 dBic (each unit antenna) |
RHCP | - |
| UHF Flight Termination DFA004100 |
350-475 MHz (Tunable) | nom 0 dBi | Linear | Omni-Directional |
| UHF Omni DTA004100 |
400 - 450 MHz | 2 dBi | Linear | Omni-Directional |
| UHF Omni Blade DTA009100 |
902-928 MHz | 2 dBi | Linear | Omni-Directional |
| UHF Omni DTA009110 |
958 - 998 MHz | 2 dBi | Linear | Omni-Directional |
| UHF Omni DTA009120 |
876 - 960 MHz | 2 dBi | Linear | Omni-Directional |
| L Band Omni DTA013100 |
1.25 - 1.40 | 2 dBi | Linear | Omni-Directional |
| L Band Blade Antenna DTA013110 |
1.35-1.4 Ghz | 0.5 dBi (with Ø100 mm ground plane) 2 dBi (with Ø200 mm ground plane) |
Linear (Vertical) | Omni-Directional |
| L Band Omni DTA017100 |
1.50 - 1.80 | 2 dBi | Linear | Omni-Directional |
| L/S Band Omni DTA020100 |
1.8 - 2.2 | 2 dBi | Linear | Omni-Directional |
| S Band Omni DTA021100 |
2.00 - 2.30 | 2 dBi | Linear | Omni-Directional |
| S Band Omni DTA026100 |
2.5 - 2.7 | 2 dBi | Linear | Omni-Directional |
| S Band Omni Blade DTA023100 |
2.2-2.4 GHz (The frequency can be revised) |
3.22 dBi | Linear | Omni-Directional |
| S Band Omni Rounded Blade DTA023120 |
2.2-2.4 GHz (The frequency can be revised) |
3 dBi | Linear | Omni-Directional |
| S Band Low Profile Patch DTA023200 |
2.2-2.4 GHz | 8.6 dBi | Linear | Directional |
| S Band Low Profile Patch DTA031100 |
3-3.2 Ghz | Min. 10 dBic | RHCP | Directional |
| LTE Band Low Profile Patch DTA026100 |
2.5-2.7 GHz | 7.6 dBic | RHCP or LHCP | Directional |
| C Band Omni Blade DTA030100 |
3.10 - 3.30 | 2 dBi | Linear | Omni-Directional |
| C Band Omni DTA030110 |
3.45 – 3.55 | 2 dBi | Linear | Omni-Directional |
| C Band Omni DTA030120 |
3.65 – 3.85 | 2 dBi | Linear | Omni-Directional |
| C Band Omni DTA050100 |
4 – 6 GHz | 2 dBi | Linear | Omni-Directional |
| C Band Omni Button DTA050120 |
4 – 6 GHz | ≥ 1.7 dBi | Linear | Omni-Directional |
| C Band Directional DTA050200 |
4 – 6 GHz | ≥ 7 dBic | RHCP | Directional |
| C Band Omni DTA070100 |
6.40 – 7.20 | 2 dBi | Linear | Omni-Directional |
| Ku Band Omni DTA150100 |
Ask for more details | ≥ 4.2 dBi | Linear | Omni-Directional |
| 2-18 Spiral DTA180200 |
2-18 GHz | ≥ 0 dBic @2 GHz ≥ 8 dBic @8 GHz ≥ 5 dBic @18 GHz |
RHCP or LHCP | Directional |
| 6-18 Spiral DTA180100 |
6-18 GHz | ≥ 4 dBic @6 GHz ≥ 4 dBic @12 GHz ≥ 4.9 dBic @18 GHz |
RHCP or LHCP | Directional |
Please contact us for custom design enquiries.
Active L1-L2 GPS Antenna
Missile Applications
Airborne Applications
L1 and L2 band LNA
Excellent out of band rejection
Durable to harsh environmental conditions
Built to withstand extreme vibration and shock
|
Active L1-L2 GPS Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | L1: 1575.42 ± 10 MHz L2: 1227 ± 10 MHz |
| Gain | L1: 4 dBic L2: 4 dBic |
| Polarization | RHCP |
| Beamwidth | L1: 95 deg L2: 102 deg |
| Gain (preamplifier) | 13±3 dB |
| Axial Ratio | ≤ 2.0 dB (@Zenith) |
| VSWR | 2:1 |
| Impedance | 50 ohm |
| Supply Voltage | 13±3 dB |
| Power Handling | 4 to 24 VDC@65mA Max |
| Lightning Protection | 1 Watt |
| Connector | SMA or TNC (Female) |
| MECHANICAL | |
| Diameter | Ø3.5 in x 0.7 in |
| Weight | 200 g (7 oz) |
| Operating Temperature | -40° to +85°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810G Method 502.5 Procedure-1 and Procedure-2 |
| High Temperature | MIL-STD-810G Method 501.5 Procedure-1 and Procedure-2 |
| Temperature Shock | MIL-STD-810G Method 503.4 Procedure-2 |
| Low Pressure | MIL-STD-810G Method 500.5 Procedure-1 |
| Acceleration | MIL-STD-810G Method 513.6 Procedure-2 |
| Mechanic Shock | MIL-STD-810G Method 516.6 Procedure-1 |
| Humidity | MIL-STD-810G Method 507.5 |
| Vibration | MIL-STD-810G Method 514.7 Procedure-1 |

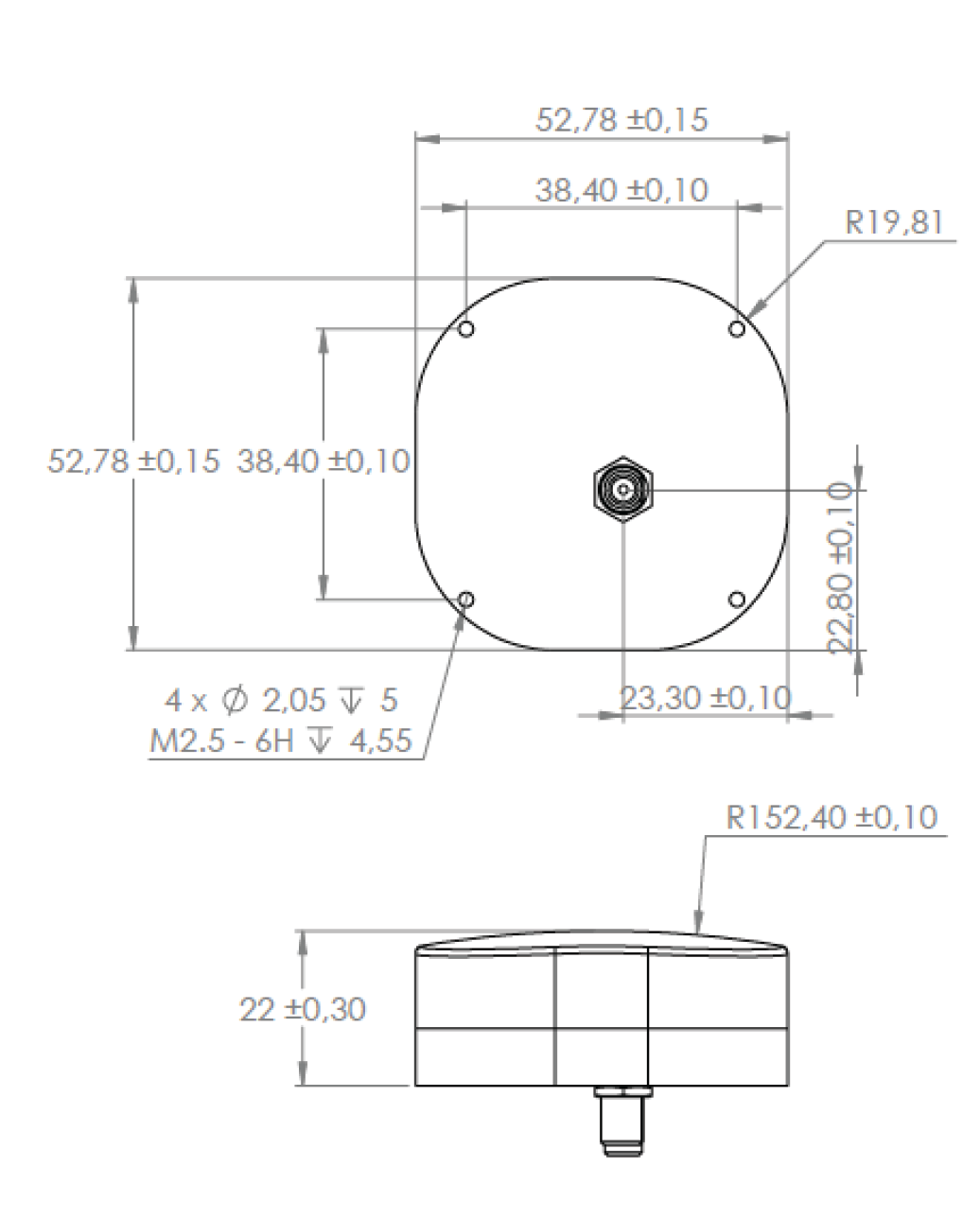

Active L1 GNSS Antenna
Missile Applications
Airborne Applications
Data Link
Durable to harsh environmental conditions
Built to withstand extreme vibration and shock
|
Active L1 GNSS Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 1560-1610 MHz |
| Radiation Pattern | Hemispherical |
| Gain | 4 dBic |
| Polarization | RHCP |
| Beamwidth | 105 deg |
| VSWR | 2:1 |
| LNA Gain | 30 dB |
| LNA Noise Figure | 2 dB |
| Out of Band Rejection | <70 dBc @1500 MHz <70 dBc @1650 MHz |
| Impedance | 50 ohm | DC Supply | 3.3 V |
| Current Consumption | 15 mA |
| MECHANICAL | |
| Conformal Diameter | Spherical (R152.4 mm) |
| Dimensions | 52,75x52.78x22mm |
| Weight | 80 g |
| Temperature | -55° to +150°C |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810G Method 502.5 Procedure-1 and Procedure-2 |
| High Temperature | MIL-STD-810G Method 501.5 Procedure-1 and Procedure-2 |
| Temperature Shock | MIL-STD-810G Method 503.4 Procedure-2 |
| Low Pressure | MIL-STD-810G Method 500.5 Procedure-1 |
| Acceleration | MIL-STD-810G Method 513.6 Procedure-2 |
| Mechanic Shock | MIL-STD-810G Method 516.6 Procedure-1 |
| Humidity | MIL-STD-810G Method 507.5 |
| Vibration | MIL-STD-810G Method 514.7 Procedure-1 |
Passive L1-L2 GPS Antenna
Missile Applications
Airborne Applications
Durable to harsh environmental conditions
Built to withstand extreme vibration and shock
|
Passive L1-L2 GPS Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | L1: 1575.42 ± 12 MHz L2: 1227 ± 12 MHz |
| Gain | L1: 4 dBic L2: 4 dBic |
| Polarization | RHCP |
| Beamwidth | L1: 95 deg L2: 102 deg |
| VSWR | 1.5:1 |
| Impedance | 50 ohm | Connector | SMA or TNC (Female) |
| MECHANICAL | |
| Dimensions | Ø3.5 in x 0.6 in |
| Weight | 170 g |
| Operating Temperature | -40° to +85°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810G Method 502.5 Procedure-1 and Procedure-2 |
| High Temperature | MIL-STD-810G Method 501.5 Procedure-1 and Procedure-2 |
| Temperature Shock | MIL-STD-810G Method 503.4 Procedure-2 |
| Low Pressure | MIL-STD-810G Method 500.5 Procedure-1 |
| Acceleration | MIL-STD-810G Method 513.6 Procedure-2 |
| Mechanic Shock | MIL-STD-810G Method 516.6 Procedure-1 |
| Humidity | MIL-STD-810G Method 507.5 |
| Vibration | MIL-STD-810G Method 514.7 Procedure-1 |
Passive L1 GPS Antenna
Missile Applications
Airborne Applications
Data Link
Durable to harsh environmental conditions
Built to withstand extreme vibration and shock
|
Passive L1 GPS Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | L1: 1575.42 ± 12 MHz |
| Radiation Pattern | Hemispherical |
| Gain | 3.5 dBic |
| Polarization | RHCP |
| Beamwidth | 110 deg |
| VSWR | 1.5:1 |
| Impedance | 50 ohm |
| Supply Voltage | >20 dB |
| Connector | SMA(Female) |
| MECHANICAL | |
| Conformal Diameter | Spherical (R152,4 mm) |
| Dimensions | 52,75x52.78x14mm (-55° to 250°C optional) |
| Weight | 50 g |
| Operating Temperature | -40° to +85°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810G Method 502.5 Procedure-1 and Procedure-2 |
| High Temperature | MIL-STD-810G Method 501.5 Procedure-1 and Procedure-2 |
| Temperature Shock | MIL-STD-810G Method 503.4 Procedure-2 |
| Low Pressure | MIL-STD-810G Method 500.5 Procedure-1 |
| Acceleration | MIL-STD-810G Method 513.6 Procedure-2 |
| Mechanic Shock | MIL-STD-810G Method 516.6 Procedure-1 |
| Humidity | MIL-STD-810G Method 507.5 |
| Vibration | MIL-STD-810G Method 514.7 Procedure-1 |
4 Array L1 Antijam Antenna
Missile Applications
Airborne Applications
Durable to harsh environmental conditions
Built to withstand extreme vibration and shock
|
4 Array L1 Antijam Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | L1: 1575.42 12 MHz |
| Gain | L1: 3 dBic (each unit antenna) |
| Polarization | RHCP |
| Beamwidth | L1:123° <2.0 dB (@Zenith) |
| VSWR | 2:1 |
| Impedance | 50 ohm |
| Connector | SMA or TNC (Female) |
| MECHANICAL | |
| Dimensions | 123.5 x 123.5 x 9.5 mm |
| Weight | 260 g |
| Operating Temperature | -40° to +85°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810G Method 502.5 Procedure-1 and Procedure-2 |
| High Temperature | MIL-STD-810G Method 501.5 Procedure-1 and Procedure-2 |
| Temperature Shock | MIL-STD-810G Method 503.4 Procedure-2 |
| Low Pressure | MIL-STD-810G Method 500.5 Procedure-1 |
| Acceleration | MIL-STD-810G Method 513.6 Procedure-2 |
| Mechanic Shock | MIL-STD-810G Method 516.6 Procedure-1 |
| Humidity | MIL-STD-810G Method 507.5 |
| Vibration | MIL-STD-810G Method 514.7 Procedure-1 |
4 Array L1 GNSS Antijam Antenna
Missile Applications
Airborne Applications
Durable to harsh environmental conditions
Built to withstand extreme vibration and shock
|
4 Array L1 GNSS Antijam Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 1560-1610 MHz |
| Gain | L1: 2 dBic (each unit antenna) |
| Polarization | RHCP |
| Beamwidth | L1:155° <3.0 dB (@Zenith) |
| VSWR | 2:1 |
| Impedance | 50 ohm | Connector | SMA or TNC (Female) |
| MECHANICAL | |
| Dimensions | 80x80x12 mm |
| Weight | 200 g |
| Operating Temperature | -40° to +85°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810G Method 502.5 Procedure-1 and Procedure-2 |
| High Temperature | MIL-STD-810G Method 501.5 Procedure-1 and Procedure-2 |
| Temperature Shock | MIL-STD-810G Method 503.4 Procedure-2 |
| Low Pressure | MIL-STD-810G Method 500.5 Procedure-1 |
| Acceleration | MIL-STD-810G Method 513.6 Procedure-2 |
| Mechanic Shock | MIL-STD-810G Method 516.6 Procedure-1 |
| Humidity | MIL-STD-810G Method 507.5 |
| Vibration | MIL-STD-810G Method 514.7 Procedure-1 |
4 Array L1/L2 GNSS Antijam Antenna
Airborne, UAV and Missile Applications
Data Link Antenna
Right Hand Circular Polarised Antenna
Ultra Lightweight
|
4 Array L1/L2 GNSS Antijam Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | L1: 1560-1610 MHz L2: 1202-1252 MHz |
| Gain | 2 dBic (each unit antenna) |
| Polarization | RHCP |
| Axial Ratio | 3.5 Max |
| Beamwidth | 155° <3.0 dB (@Zenith) |
| VSWR | 2:1 |
| Impedance | 50 ohm |
| Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | 109x109x17.5 mm |
| Weight | 250 g |
| Operating Temperature | -40° to +85°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810G Method 502.5 Procedure-1 and Procedure-2 |
| High Temperature | MIL-STD-810G Method 501.5 Procedure-1 and Procedure-2 |
| Temperature Shock | MIL-STD-810G Method 503.4 Procedure-2 |
| Low Pressure | MIL-STD-810G Method 500.5 Procedure-1 |
| Acceleration | MIL-STD-810G Method 513.6 Procedure-2 |
| Mechanic Shock | MIL-STD-810G Method 516.6 Procedure-1 |
| Humidity | MIL-STD-810G Method 507.5 |
| Vibration | MIL-STD-810G Method 514.7 Procedure-1 |
UHF Flight Termination Antenna
Airborne Applications
For Aircrafts, Helicopters, UAV’s
Data Link, Transponder
Rugged, Airborne Design
Ultra Lightweight
Built to withstand extreme vibration and shock
|
UHF Flight Termination Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 350-475 MHz (Tunable) |
| Bandwidth | ±1 MHz @ VSWR 1.5:1 ±2 MHz @ VSWR 2:1 |
| Gain | nom 0 db |
| Polarization | Linear |
| Coverage | Omni-Directional |
| Imput Impedance | 50 ohm |
| RF Connector | SMA-Female |
| Power Rating | 20W cw, max. |
| Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | 142x10x25 mm |
| Weight | 70 g |
| Operating Temperature | -55° to 250°C |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Acceleration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
UHF Omni Blade Antenna
Airborne and UAV Applications
Telemetry, Data Link, Transponder
Omni Directional Pattern
Ultra Lightweight
Durable to harsh environmental conditions
|
UHF Omni Blade Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 902-928 Mhz |
| Gain | 2 dBi |
| Polarization | Linear (Vertical) |
| Beamwidth | 360° (Az) x 87°(El) |
| Cross Polarization | >30 dB |
| VSWR | 1.5:1 |
| Power Rating | 20 W |
| Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | 90x50x113 mm |
| Weight | 210 g |
| Operating Temperature | -40° to +85°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Acceleration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
L Band Hemi Omni Antenna
Airborne, UAV and Missile Applications
Data Link, Telemetry Antenna
Right Hand Circular Polarised Antenna
Durable to harsh environmental conditions
Built to withstand extreme vibration and shock
|
L Band Hemi Omni Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 1345-1405 MHz |
| Radiation Pattern | Hemi Omni |
| Gain | 5 dBic Nom. |
| Polarization | RHCP |
| Beamwidth | 140 x 140 Typ. @ 0 dBiC |
| VSWR | 1.5:1 |
| Power Rating | 100 W |
| Impedance | 50 ohm |
| Front to Back | >10 dB |
| Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | Ø99 x 94.2 mm |
| Weight | 250 g |
| Operating Temperature | -40° to +85°C |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Acceleration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
L Band Blade Antenna
Airborne Applications
Telemetry, Data Link, Transponder
Rugged
Ultra Lightweight
Built to withstand extreme vibration and shock
|
L Band Blade Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 1.35-1.4 Ghz |
| Gain | 2 dBi |
| Polarization | Linear (Vertical) |
| Beamwidth | 360° (Az) x 116°(El) |
| VSWR | 2:1 |
| Power Rating | 20 W |
| Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | 84x14.4x61.5 mm |
| Weight | 40 g |
| Operating Temperature | -40° to +85°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Acceleration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
S Band Omni Blade Antenna
Airborne Applications
Telemetry, Data Link, Transponder
Rugged
Ultra Lightweigt
Built to withstand extreme vibration and shock
|
S Band Omni Blade Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 2.2-2.4 Ghz (The frequency can be revised) |
| Gain | 3.22 dBi |
| Polarization | Linear (Vertical) |
| Beamwidth | 360° (Az) x 73.1°(El) |
| Cross Polarization | >36 dB |
| VSWR | 1.7:1 |
| Power Rating | 30 W |
| Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | 84x14.4x43.2 mm |
| Weight | 25 g |
| Operating Temperature | -40° to + 71°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Accelaration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
S Band Omni Rounded Blade Antenna
Airborne Applications
Telemetry, Data Link, Transponder
Rugged
Ultra Lightweight
Built to withstand extreme vibration and shock
|
S Band Omni Rounded Blade Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 2.2-2.4 Ghz (The frequency can be revised) |
| Gain | 3 dBi |
| Polarization | Linear (Vertical) |
| Beamwidth | 360° (Az) x 74.5°(El) |
| Cross Polarization | >36 dB |
| VSWR | 1.7:1 |
| Power Rating | 30 W |
| Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | 84x14.4x43.2 mm |
| Weight | 25 g |
| Operating Temperature | -40° to + 71°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Accelaration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
S Band Low Profile Patch Antenna
Airborne Applications
Telemetry, Data Link, Transponder
Rugged
Ultra Lightweight
Built to withstand extreme vibration and shock
|
S Band Low Profile Patch Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 2.2-2.4 Ghz |
| Gain | 8.6 dBi |
| Polarization | Linear (Vertical) |
| Beamwidth | 74° (Az) x 67°(El) |
| Cross Polarization | >22 dB |
| VSWR | 1.5:1 |
| Power Rating | 20 W |
| Front to Back | >20 dB |
| Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | 97x97x13.65 mm |
| Weight | 143 g |
| Operating Temperature | -40° to +85°C |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Accelaration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
S Band Low Profile Patch Array Antenna
Airborne Applications
GSM,Telemetry, Data Link, Transponder
Circular Polarized Antenna
Ultra Lightweight
Built to withstand extreme vibration and shock
|
S Band Low Profile Patch Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 3-3.2 Ghz |
| Gain | Min. 10 dBic |
| Polarization | RHCP |
| Beamwidth | 20° (Az) x 20° (El) |
| VSWR | 1.5:1 |
| Power Rating | 10 W |
| Front to Back | >20 dB |
| Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | 166x142x17.1 mm |
| Weight | <400 g |
| Operating Temperature | -40° to +85°C |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Accelaration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
LTE Band Low Profile Patch Antenna
Airborne Applications
GSM, Telemetry, Data Link, Transponder
Circular Polarized Antenna
Rugged
Ultra Lightweigt
Built to withstand extreme vibration and shock
|
LTE Band Low Profile Patch Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 2.5-2.7 Ghz |
| Gain | 7.6 dBic |
| Polarization | RHCP or LHCP |
| Beamwidth | 74° (Az) x 72°(El) |
| Cross Polarization | >22 dB |
| VSWR | 1.5:1 |
| Front to Back | >25 dB |
| Connector | SMA or TNC (Female) |
| MECHANICAL | |
| Dimensions | 97x97x16.5 mm | Weight | 155 g |
| Operating Temperature | -40° to +85°C |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Acceleration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
C Band Omni Antenna
Airborne and UAV Applications
Telemetry, Data Link, Transponder
Omni Directional Pattern
Ultra Lightweight
Durable to harsh environmental conditions
|
C Band Omni Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 4 – 6 GHz |
| Gain | 2 dBi |
| Polarization | Linear (Vertical) |
| Beamwidth | 360° (Az) x 62°(El) |
| Cross Polarization | >30 dB |
| VSWR | 1.5:1 |
| Power Rating | 20 W | Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | Ø32.2x30.5 mm |
| Weight | 42 g |
| Operating Temperature | -40° to +85°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Acceleration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
C Band Omni Button Antenna
Airborne, UAV and Missile Applications
Omni Directional Data Link Antenna
Lineer Polarised Antenna
|
C Band Omni Button Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 4 – 6 GHz |
| Gain | ≥ 1.7 dBi |
| Polarization | Linear |
| Beamwidth | 360° (Az) x 77°(El) |
| Impedance | >50 ohm |
| VSWR | 1.7:1 | Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | Ø22.4x 2 mm |
| Weight | 30 g |
| Operating Temperature | -40° to +85°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Acceleration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
C Band Antenna
Airborne, UAV and Missile Applications
Data Link Antenna
Right Hand Circular Polarised Antenna
|
C Band Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 4-6 Ghz |
| Gain | ≥ 7 dBi |
| Polarization | RHCP |
| Beamwidth | 77° |
| Impedance | >50 ohm |
| VSWR | 1.7:1 | Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | Ø43x 31.4 mm |
| Weight | 30 g |
| Operating Temperature | -40° to +85°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Acceleration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
Ku Band Omni Antenna
Airborne and UAV Applications
Telemetry, Data Link, Transponder
Omni Directional Pattern
Lineer Polarised Antenna
Durable to harsh environmental conditions
|
Ku Band Omni Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | Ku Band (ask for more details) |
| Gain | ≥ 4.2 dBi |
| Polarization | Linear |
| Beamwidth | 360° (Az) x 35°(El) |
| Impedance | >50 ohm |
| VSWR | 1.3:1 | Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | Ø48.2x 31.5 mm |
| Weight | 42 g |
| Operating Temperature | -40° to +85°C (-55° to 250°C optional) |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Acceleration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
2-18 GHz Spiral Antenna
Airborne, UAV and Missile Applications
Data Link Antenna
Right Hand Circular Polarised Antenna
Ultra Lightweight
|
2-18 GHz Spiral Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 2-18 GHz |
| Gain | ≥ 0 dBic @2 GHz ≥ 8 dBic @8 GHz ≥ 5 dBic @18 GHz |
| Polarization | RHCP or LHCP |
| Axial Ratio | 3.5 Max |
| Beamwidth | E-Plane: 110-40 H-Plane: 110-40 |
| Impedance | 50 ohm |
| VSWR | 2:1 Typ. 3 Max. |
| Connector | SMA(Female) |
| MECHANICAL | |
| Dimensions | Ø60.6x40 mm |
| Weight | 170 g |
| Temperature | -55° to +85°C |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Acceleration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
6-18 GHz Spiral Antenna
Airborne, UAV and Missile Applications
Data Link Antenna
Right Hand Circular Polarised Antenna
Ultra Lightweight
|
6-18 GHz Spiral Antenna |
|
|---|---|
|
ELECTRICAL |
|
| Frequency | 6-18 GHz |
| Gain | ≥ 4 dBic @6 GHz ≥ 4 dBic @12 GHz ≥ 4.9 dBic @18 GHz |
| Polarization | RHCP or LHCP |
| Axial Ratio | 4.0 Max |
| Beamwidth | E-Plane: 110°-50° H-Plane: 100°-60° |
| Impedance | 50 ohm |
| VSWR | 2:1 Typ. 2.8 Max. |
| Connector | SMA or TNC (Female) |
| MECHANICAL | |
| Dimensions | Ø25 x 40 mm |
| Weight | 29 g |
| Temperature | -55° to +85°C |
| ENVIRONMENTAL AND FUNCTIONAL TESTS | |
| Low Temperature | MIL-STD-810F Method 502.4 Procedure-1 |
| High Temperature | MIL-STD-810F Method 501.4 Procedure-1 |
| Temperature Shock | MIL-STD-810F Method 503.4 Procedure-1 |
| Low Pressure | MIL-STD-810F Method 500.4 Procedure-1 |
| Acceleration | MIL-STD-810F Method 513.5 Procedure-2 |
| Mechanic Shock | MIL-STD-810F Method 516.5 Procedure-1 |
| Humidity | MIL-STD-810F Method 507.4 |
| Vibration | MIL-STD-810F Method 514.5 Procedure-1 |
